High Temperature ATR-Probe
  • art photonics High Temperature ATR-Probe
  • 제조사 :
    art photonics
  • Catalog Number :
    ATR-P-D-6-30-200/50-HT
  • CAS Number :
견적문의
제품특징 어플리케이션 동영상 카탈로그

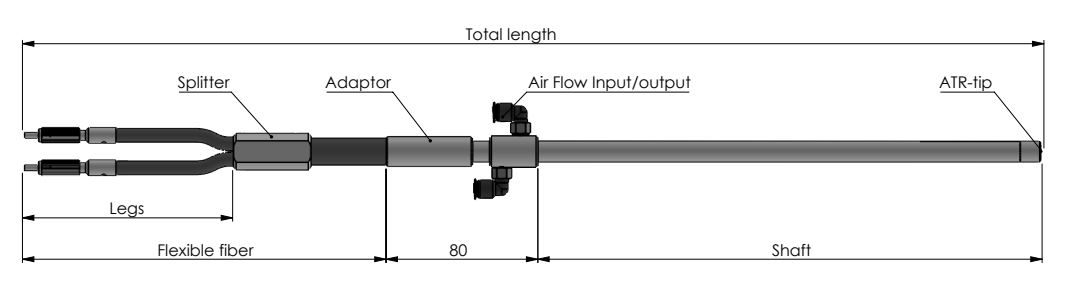

Probe Type : ATR-probe with gas cooling design

Sealing Material : PEEK

Tip Protection : crown sized (optional)

Probe Shaft : L = 300 ± 5 m

Shaft Material : Hastelloy C22

Total Length : 2 ± 0.05 m

Flexible fiber : 1.7 m, 2 legs of 0.5 m length each

Terminations : 2 x SMA905

Protection tubing : Liquid Tight Protection (LTP)
