Raman Scattering probe
  • art photonics Raman Scattering probe
  • 제조사 :
    art photonics
  • Catalog Number :
    RS-NIR-S-12-20-200/50-FS
  • CAS Number :
견적문의
제품특징 어플리케이션 동영상 카탈로그

Probe Type : Raman

Window Sealing Material : Epoxy glue/PTFE, PEEK

Window : Sapphire, AR coated (600-1050 nm)

Laser Wavelengths : 621-787 nm

Detection Range : from 805 nm (300 cm-1 @ 785nm)

Filter Efficiency : OD > 8 for Laser Rejection

Illumination (Laser) Fiber : NIR/AL 105/125, NA = 0.22

Collection (Detector) Fiber : NIR200/220, NA = 0.22

Shaft Material : Stainless Steel 1.4301

Shaft Sealing Material : FPM

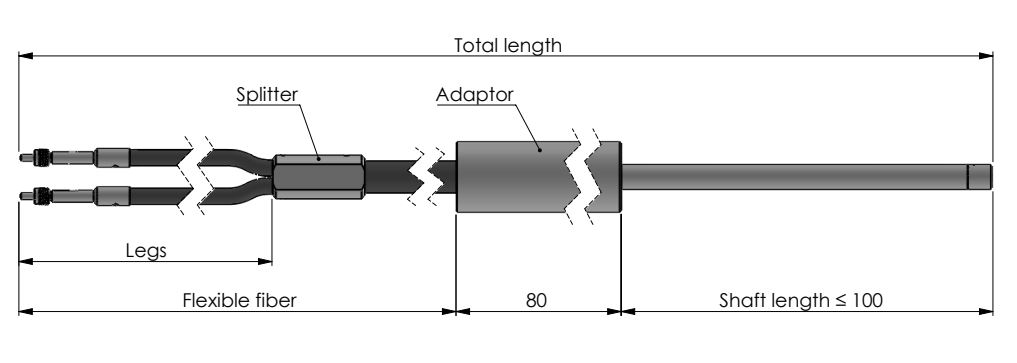

Total Length : 2 ± 0.05 m

Flexible fiber : 1.2 m, legs of 0.5 m length each

Protection tubing : Liquid Tight Protection (LTP)

Terminations : Laser: FC/PC; Detector: SMA905

Temperature : 0-+120 °C

Pressure : 0 - 20 Bar
