악세사리FT-IR 악세사리
Reflection Probes
  • art photonics Reflection Probes
  • 제조사 :
    art photonics
  • Catalog Number :
    R-NIR-S-6-15-200/50-FT
  • CAS Number :
견적문의
제품특징 어플리케이션 동영상 카탈로그

Probe Type : Reflection

Sealing Material : Glue EPOTEK 353 ND

Window : Sapphire, 20˚ angle

Probe Shaft : OD = 6 mm, L = 150 mm

Shaft Material : Stainless Steel 316 L

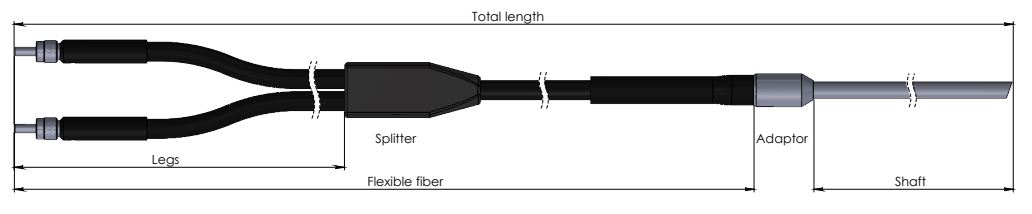

Total Length : 2 ± 0.05 m

Flexible fiber : 1.35 m, legs of 0.5 m length each

Terminations : 2 x SMA905

Protection tubing : Metal, PVC coated

Temperature : 0 - + 150 ˚C

Pressure : 0 - 10 Bar
