악세사리Fiber Probes
Reflection Fluo Probes
  • art photonics Reflection Fluo Probes
  • 제조사 :
    art photonics
  • Catalog Number :
    R-NIR-3-15-200/30
  • CAS Number :
견적문의
제품특징 어플리케이션 동영상 카탈로그

Probe Type : Reflection

Sealing Material : Glue EPOTEK 353 ND

Window : No

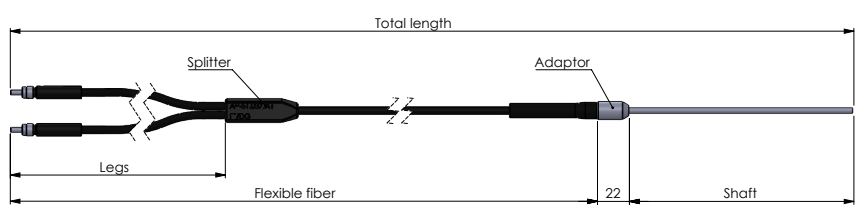

Probe Shaft : OD = 3.5 mm, L = 150 mm

Shaft Material : Stainless Steel 316 L

Total Length : 2 ± 0.05 m

Flexible fiber : 1.55 m, legs of 0.3 m length each

Terminations : 2 x SMA905

Protection tubing : KSP-4N, OD = 7 mm

Temperature : 0 - + 150 ˚C

Pressure : 0 - 10 Bar
