악세사리Fiber Probes
Reflection Mid-IR Probes
  • art photonics Reflection Mid-IR Probes
  • 제조사 :
    art photonics
  • Catalog Number :

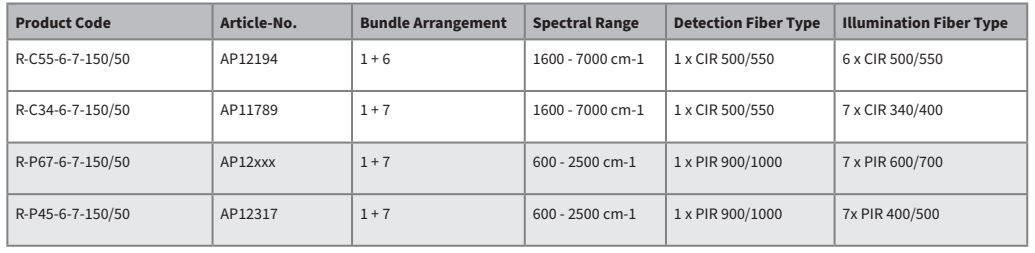

    R-C55-6-7-150/50
  • CAS Number :
견적문의
제품특징 어플리케이션 동영상 카탈로그

Probe Type : Mid-IR Reflection

Sealing Material : No

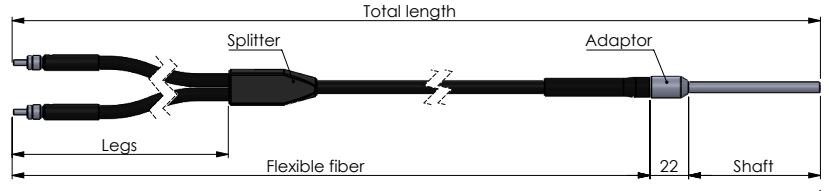

Probe Shaft : OD = 6.3 mm, L = 75 mm

Shaft Material : Stainless Steel 316 L

Total Length : 1.5 ± 0.05 m

Flexible fiber : 0.9 m, legs of 0.5 m length each

Terminations : 2 x SMA905

Protection tubing : Stinless Steel, OD = 7 mm

Temperature : 0 - + 80 °C

Pressure : 1 Bar
