NMR ConsumablesNMR/EPR tube
Doty® Susceptibility Plugs
  • Doty® Susceptibility Plugs
  • 제조사 :
    Wilmad-LabGlass
  • Catalog Number :
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

NMR Small Volume & External Referencing

 Doty® Susceptibility Plugs







Wilmad - LabGlass 는 80년의 역사를 가진, NMR Tube를 처음 제조하고 발명한 회사입니다.



Frequency(MHz Rating)의 기준을 정격한 미국 브랜드로, 튜브의 직경오차가 작아 정밀성이 매우 뛰어납니다.







(주)비케이인스트루먼트는 미국 Wilmad- LabGlass사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.

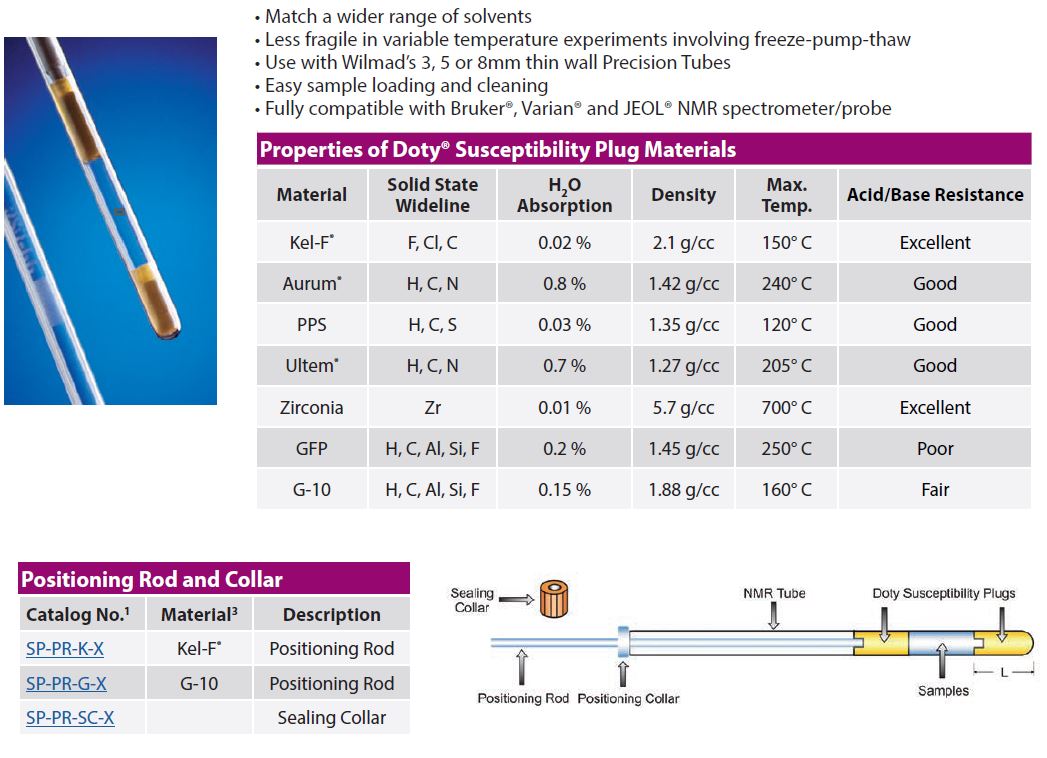

Tips for Using Susceptibility Plugs

1. Determine the sample solvent. For easier bubble removal and use with viscous samples/solvents, use plugs with vent grooves along the outer surface (product numbers with a “V”).

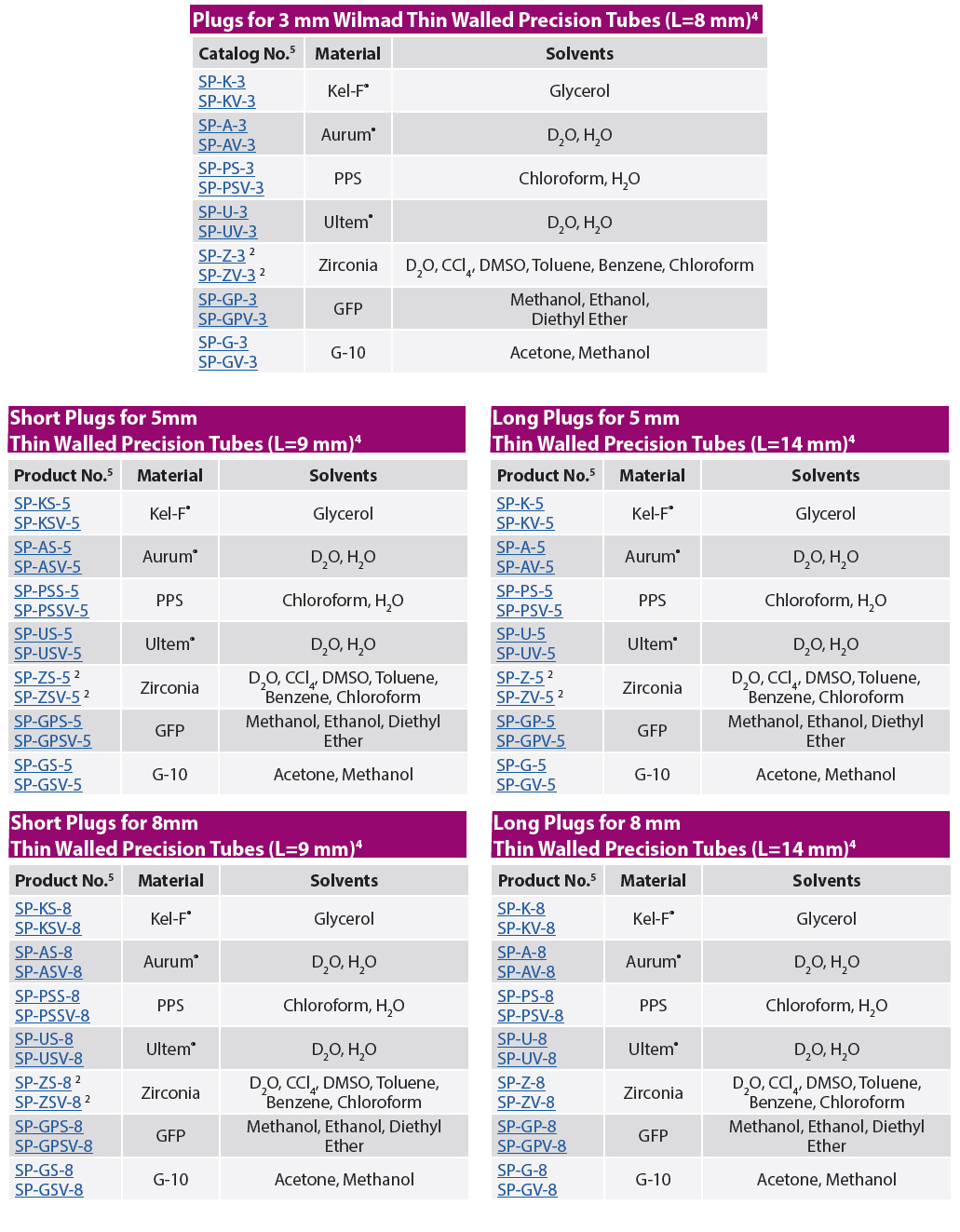

2. Select plug material-closest match of magnetic susceptibility constants.



3. Check chemical resistance compatibility with sample/solvent.



4. Store Doty Plugs in deuterated solvent to suppress water absorption.



5. Determine plug length using the depth gauge. Ideally, the plugs should not protrude into the Rf Coil limit.



6. Susceptibility constants of rod/collar are inconsequential. Rod/collar material selection is based on chemical resistance.



7. G-10 rods are more rigid and easier to use; Kel-F® rods are recommended for use with organic solvents.
