AccessoriesFT-IR Acc.
MICROPLATE READER - O
  • ATR, Temperature Control
  • 제조사 :
    PIKE Technologies
  • Catalog Number :
    047-10XXX
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

MICROPLATE READER

 Out-of-Compartment Microplate Reader – Plate Reading Option for UV-Vis Spectrophotometers


(주)비케이인스트루먼트는  PIKE Technologie 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.











DESCRIPTION

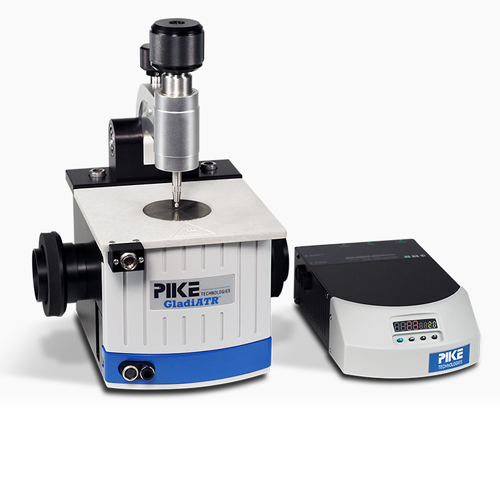

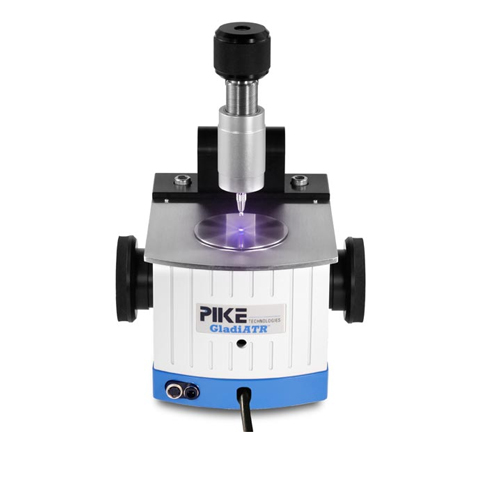

The GladiATR’s optical design provides the highest energy throughput, highest available pressure, and offers optional heated plates up to 300 °C, and cooled crystal plates. With a monolithic diamond and all-reflective optics the spectral range spans from mid-IR into the far-IR. The GladiATR offers a highly durable and rugged design to be used in environments where large numbers of samples are measured, where samples may be intractable solids, where you want the best quality spectrum every time and where you need flexibility for new sample types in the future. A Ge crystal configuration is also available for highly absorbing samples.

Monolithic diamond crystal design

All reflective optics – full spectral range for mid-IR and far-IR analysis

Temperature control options – heating up to 300 °C and sub ambient sampling




FEATURES

·  Diamond crystal design – cannot scratch or fracture
·  Extreme pressure application – for hard and demanding solid samples
·  Highest energy throughput design – for excellent-quality FTIR spectra and minimum scan time
·   All reflective optics – full spectral range for analysis in the mid-IR and far-IR regions
·  Heated crystal plate options – ATR temperature studies up to 300 °C

·  Compatible with most FTIR spectrometers
