AccessoriesFT-IR Acc. (ATR)
JetStream ATR Accessory
  • JetStream ATR Accessory
  • 제조사 :
    PIKE Technologies
  • Catalog Number :
    020-19XX
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

JETSTREAM ATR

  Measurements of Liquids under Varying Conditions


(주)비케이인스트루먼트는  PIKE Technologie 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.






DESCRIPTION

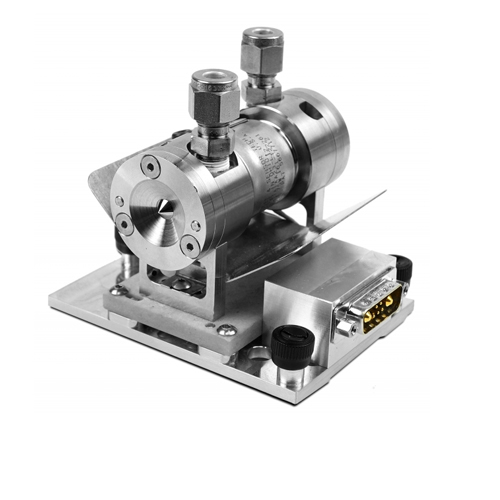

The PIKE Technologies Jet Stream is a unique ATR accessory optimized for analysis of liquids in static or flow modes at varying pressure. The accessory design revolves around a cylindrical ATR crystal that is encased in a heavy-duty stainless steel body. The sample is introduced via a Swagelok® connector (from 1/16″ up to 1/4″ tube OD) and completely surrounds the ATR crystal providing efficient sampling, excellent reproducibly and sufficient throughput for high sensitivity measurements.

Efficient ATR design for static and flowing liquid measurements

Small sample chamber provides efficient sampling

ZnSe and Germanium crystal options to match sample requirements

Temperature control option up to 200 °C

Qualitative and quantitative applications





FEATURES

·  Efficient ATR design for static and flowing liquid measurements
·  Small sample chamber provides efficient sampling
·  ZnSe and Ge crystal options to match sample requirements
·  Qualitative and quantitative applications
·  Temperature control option up to 200 °C
·  Pressures up to 1500 psi
