AccessoriesFT-IR Acc. (ATR)
VATR(The Variable Angle ATR)
  • VATR
  • 제조사 :
    PIKE Technologies

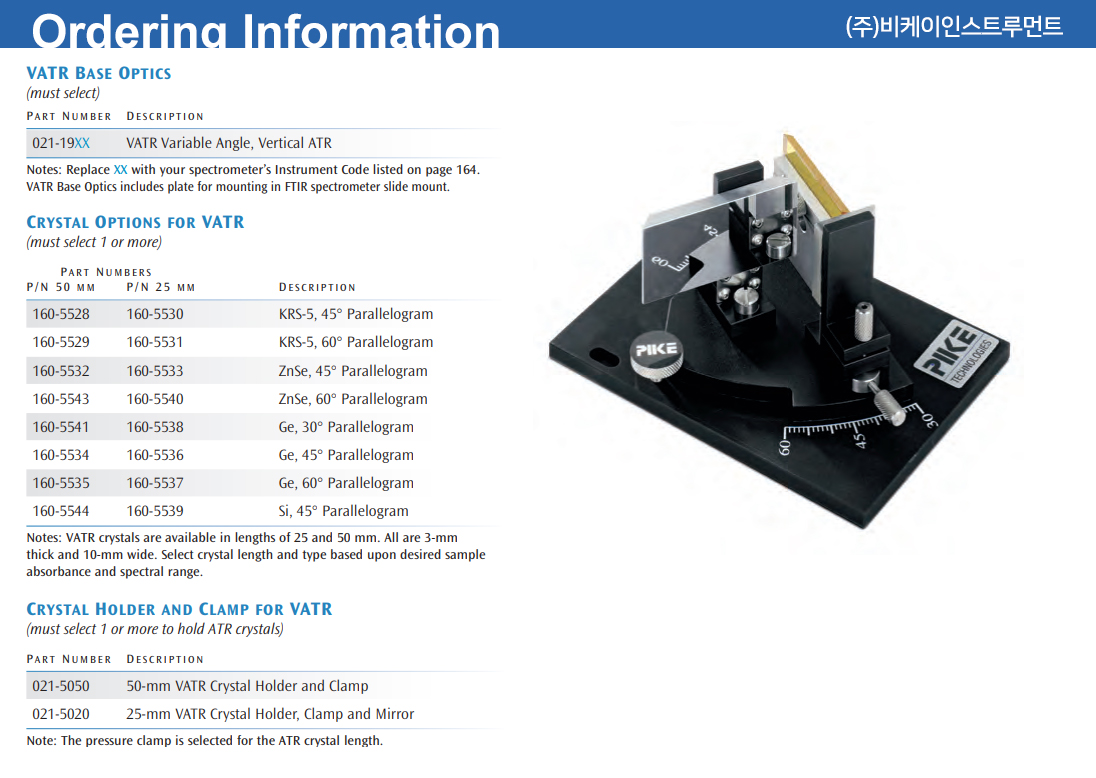

  • Catalog Number :
    021-19XX
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

Classic VATR

  Variable Angle ATR for Analysis of Solids, Films and Coatings


(주)비케이인스트루먼트는  PIKE Technologie 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.



DESCRIPTION

The Variable Angle ATR, is a traditional in-compartment accessory with the ATR crystal mounted vertically with respect to the spectrometer baseplate. Its optical layout allows continuous adjustment of the incident beam angle between 30 to 60 degrees. This accessory is suitable for the analysis of solids, films and coatings, but for obvious reasons, it cannot be used for working with liquids.  VATR is an excellent, low-cost tool for teaching the principles of internal reflection spectroscopy, and for basic research.

30° to 60° variable angle of incidence

Economical introduction to ATR techniques

Full control over number of reflections and depth of penetration


FEATURES

·  30 to 60 degree – continuously variable angle of incidence
·  Full control over the number of reflections and depth of penetration
·  Unique mechanism for fine-tuning mirror positions and precise and repeatable alignment
·  High energy throughput
·  Stainless steel, easy to remove crystal mounts and anvils
·  Economical introduction to ATR techniques – excellent R&D and teaching tool
