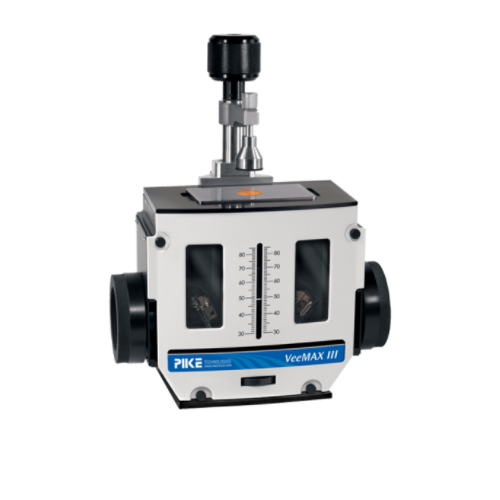

VeeMAX III with ATR

  Variable Angle, Single Reflection ATR for Monox-x-x-x-x-layers and Depth Profiling Studies


(주)비케이인스트루먼트는  PIKE Technologie 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.





DESCRIPTION

The VeeMAX III with ATR offers continuous variable angle of incidence and a variety of crystal plates to selectively control the depth of penetration of the IR beam into the sample. The design allows for constant purge, which is not broken upon sample loading,  and an integrated polarizer slot. ATR applications include the study of x-x-x-x-x-x-layered samples, coatings, release agents, monox-x-x-x-x-x-layers on silicon and chemical migration studies. An electrochemical cell add-on is also available to be used with the VeeMAX.

· Variable angle of incidence for depth profiling
· High throughput and wide selection of ATR crystal types available
· Electrochemical cell option
· Temperature control option




FEATURES

·  30 to 60 degree – continuously variable angle of incidence
·  Continuously variable set angle – 30 to 80 degrees
·   0.4 to 46 micron depth of penetration – ideal for depth profiling studies
·   High throughput for excellent quality spectra
·  Optional, high-pressure clamp for sampling of films, coatings or powdered samples
·   Integrated position for manual or automated polarizer
·   Automated option with electronic control module and AutoPRO software for automated, high-precision experiments
·  VeeMAX III can be used as a variable angle of incidence specular reflection accessory
·   Configurable for specialized applications – monox-x-x-x-x-x-layer studies and spectroelectrochemistry
·   Sealed and purgeable optical design to eliminate water vapor and carbon dioxide interferences
