AccessoriesFT-IR Acc. (ATR)
Multiple Reflection HATR
  • Maximum Sensitivity and Highly Versatile FTIR Sampling
  • 제조사 :
    PIKE Technologies
  • Catalog Number :
    022-19XX
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

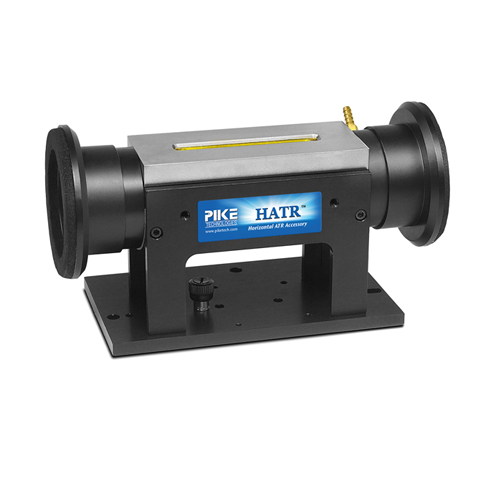

Multiple Reflection HATR

  Maximum Sensitivity and Highly Versatile FTIR Sampling


(주)비케이인스트루먼트는  PIKE Technologie 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.








DESCRIPTION

Horizontal Attenuated Total Reflectance (HATR) accessories successfully replace constant path transmission cells, salt plates and KBr pellets used in the analysis of liquid, semi-liquid materials and solids. HATRs feature a constant and reproducible effective pathlength and are well suited for both qualitative and quantitative applications. The HATR may be configured with flat or trough plates, and for up to 20 internal reflections. Flow cells and heating options are also available.

Excellent energy throughput offering high signal-to-noise ratio

Up to 20 internal reflections for maximum sensitivity for low concentration components

HATR plates with ZnSe, KRS-5, Ge, AMTIR, and Si crystals

Temperature control options




FEATURES

·  Excellent energy throughput offering high signal-to-noise ratio and spectral quality
·  Up to 20 internal reflections on the sample for maximum sensitivity for low concentration components
·  Removable crystal plates with pinned positioning for high precision and quick cleanup
·  HATR plates with ZnSe, KRS-5, Ge, AMTIR or Si crystals with selectable face angles to optimize sampling depth
·  In-compartment (HATR) and out-of-compartment (HATRPlus) versions for small and extra large sample sizes

·  Several temperature controlled and flow-through crystal plate options
