GLADIATR™ VISION Diamond ATR with Sample View
  • ATR, Single Reflection, Temperature Control
  • 제조사 :
    PIKE Technologies
  • Catalog Number :
    026-19XX
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

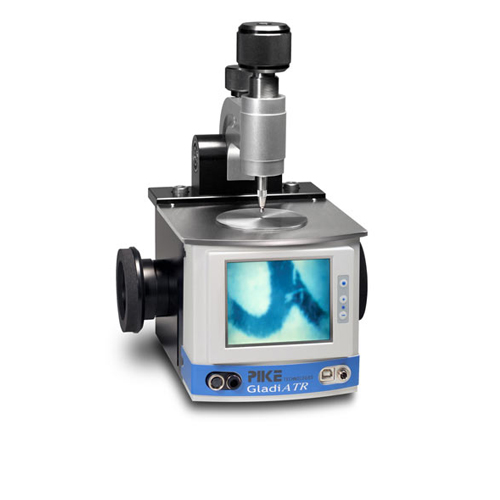

GLADIATR™ VISION

 Diamond ATR with Sample View


(주)비케이인스트루먼트는  PIKE Technologie 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.







DESCRIPTION

The GladiATR Vision™ is a novel sampling tool which couples small area infrared analysis with simultaneous viewing. Samples are placed face down and positioned on the diamond crystal while its image is projected in real-time on the LCD screen. Finding and optimizing the sample placement for specific analysis areas is easy and fast! Analysis of thick or non-transparent samples is no problem because viewing is through the diamond crystal. The Vision’s all-reflective optics and monolithic diamond results allows full spectral range measurements.



FEATURES

·  Excellent energy throughput offering high signal-to-noise ratio and spectral quality
·  Up to 20 internal reflections on the sample for maximum sensitivity for low concentration components
·  Removable crystal plates with pinned positioning for high precision and quick cleanup
·  HATR plates with ZnSe, KRS-5, Ge, AMTIR or Si crystals with selectable face angles to optimize sampling depth
·  In-compartment (HATR) and out-of-compartment (HATRPlus) versions for small and extra large sample sizes

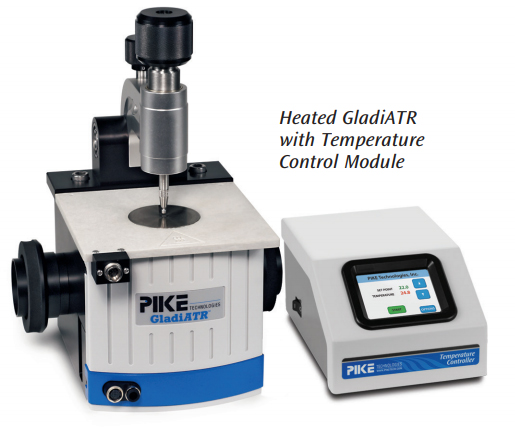

·  Several temperature controlled and flow-through crystal plate options
