NMR ConsumablesNMR/EPR tube
Wilmad Precision NMR Tubes(Ultra-Thin, Medium, Heavy)
  • 5mm O.D Walled Precision NMR Tubes(Ultra-Thin, Medium, Heavy)
  • 제조사 :
    Wilmad-LabGlass
  • Catalog Number :
  • CAS Number :
    545-PPT-7
견적문의
제품 특징 어플리케이션 동영상 카탈로그

Wilmad Precision NMR Tubes



 Wilmad O.D. 5mm Walled Precision NMR Tubes (Ultra-Thin, Medium, Heavy)



Wilmad - LabGlass 는 80년의 역사를 가진, NMR Tube를 처음 제조하고 발명한 회사입니다.

Frequency(MHz Rating)의 기준을 정격한 미국 브랜드로, 튜브의 직경오차가 작아 정밀성이 매우 뛰어납니다.



(주)비케이인스트루먼트는 미국 Wilmad- LabGlass사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.

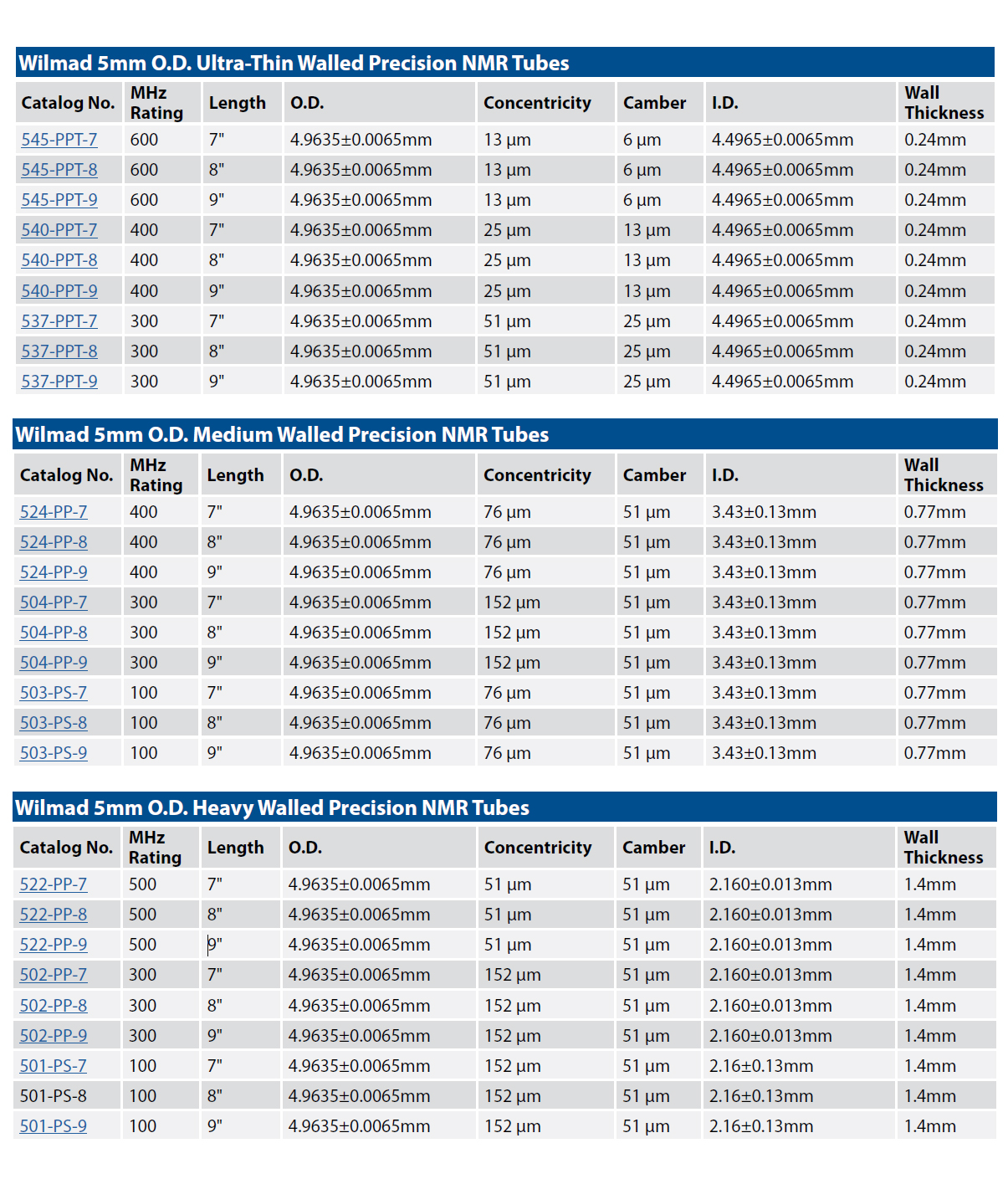

To maximize SNR, Precision NMR Tubes have minimal paramagnetic impurities that would impact shimming. Tight I.D. and O.D. tolerances as small as 0.0065mm accommodate Wilmad inserts.





• Manufactured in a state-of-the-art ISO 9001:2015 USA facility using a unique precision shrinking and grinding process to shape the inner surface with maximized filling factor

• Inner surface is resistant to strong acid and base at ambient temperature

• Can be operated safely at temperatures up to 230˚ C, and within a temperature step of 120˚ C

• Rated as hydrolytic class 1

• Ideal for experiments requiring critical shimming quality (high/ultrahigh field, multi-dimensional, multi-nuclei, DNP experiments and studies involving biological samples)

• Made from borosilicate glass that meets the requirement of Type 1 Class A glass from ASTM E438

• 100% inspection with multiple NIST traceable gauges and optical surface defect checks

• Includes disposable cap





Note: Caps are not recommended for use with samples dissolved in chloroform-d or acetone-d₆.
